R40

4G LTE Cellular Industrial Router (2SIMCards, 3LAN, 1WAN, 1 RS485, 1RS232, 4AIN, 2DIN, 2DO)

High-performance industrial-grade cellular router adopts 32-bit processor, developed based on Linux system, supports GSM/2G/3G/4G/GPRS/EDGE/WCDMA/HSPA+/LTE network, provides high-speed wireless network bandwidth for the device through wireless connection, and has automatic detection of network disconnection, automatic restart of dial-up failure, and scheduled restart to ensure network Stable connection.

This router is an industrial IoT high-speed router, compatible with 4G/3.5G/3G/2.5G network, flagship
configuration, VPN link, industrial protection, wide temperature, wide voltage design, easy to set up high speed, stable, The wireless transmission network uses the public LTE network to provide users with wireless long-distance data transmission.

The 4G router adopts high-performance industrial-grade 32-bit communication processor and industrial-grade wireless module, with embedded real-time operating system as software support platform, and provides one RS232 or RS485, 3 LAN, 1 WAN and WIFI interface, which can be connected at the same time. Serial devices, Ethernet devices, and WIFI devices implement transparent data transmission and routing.

Features

Support hundreds of 3G/4G wireless modules, plug and play;
Intelligent anti-drop line, support online detection, online maintenance, automatic redial of dropped calls, ensuring that the device is always online;
Cloud remote background management, ad push, remote upgrade and remote configuration;
Local network PHP browsing and remote synchronization of local storage content;
Support serial port TCP/UDP transparent data transmission or AT command transmission;
SMS control route online and offline, short-term notification of routing status;
Support VPN security tunneling, including PPTP, L2TP;
Complete and robust router function, support multiple Internet access methods: automatic allocation, specified IP, PPPoE;
Support ARP, DDNS, DHCP, DNS , HTTP,HTTPS, ICMP, PPP, PPPoE, SMTP, SNTP, SSL,TCP/IP, Telnet, UDP protocols;
Support serial port local TFTP, web software upgrade.

Specifications

Item	Parameter	Description
Power Supply	Input voltage	9-57VDC
	Consumption	Normal：100mA@12V,Max：800mA@12V
	Protection	Anti-reverse connection Protection,ESD Air：15KV,Surge：4KV
Ethernet	QTY	1WAN,3LAN
	Type	RJ45 Integrated 10/100M,MDI/MDIX
	POE (Optional)	Support 3 POE power output Compatible with IEEE802.3at / af standards Single POE maximum output power 30W
	Protection	ESD contact: 8KV, surge: 4KV (10/1000us)
Analog input	QTY	4
	Type	4-20mA,0-5V
	ADC Resolution	16 bit
	Port Type	3.5mm
	Port Protection	EFT: 40A(5/50ns)
Digital input	QTY	2
	Type	dry or wet contact
	Port Type	3.5mm
	Range	High level (1) 3-30V, low level (0) 0-1V
	Pulse frequency	<100Hz
	Port Protection	Isolation voltage 3750Vrms
Digital output	QTY	2
	Type	Sink output
	Port Type	3.5mm
	Load voltage	Max 50V
	Load current	500mA(single),625mW
	Port Protection	EFT: 40A (5/50ns)
Serial Port	QTY	2 channel
	Type	RS485,RS232
	Baud rate	110bps-128000bps
	Data bit	7,8
	Parity Bit	None, Even, Odd
	Stop Bit	1,2
	Operating mode	AT Command mode, Transparent transmission mode
	Protection	ESD contact: 8KV, surge: 4KV (8/20us)
WIFI	Antenna port qty	2
	Antenna port type	SMA hole type
	Protocol	802.11a/b/g/n（mixed）
	Mode	AP mode, client mode
	Frequency	2.4G
	Channel	1-13
	Security	Open ,WPA,WPA2
	Encryption	AES,TKIP,TKIPAES
	Connections numbers	32 max
	Rate	300Mbps（Max）
	Transmission distance	Open space up to 100 meters
	SSID broadcast switch	Support
Cellular Network	Antenna port qty	1
	Antenna port type	SMA hole type
	2G	GSM/EDGE：850,900,1800,1900MHz
	3G	GSM/EDGE：850,900,1800,1900MHz/UMTS：850,900,2100MHz
	4G (E version)	GSM/EDGE：900,1800MHz WCDMA：B1,B5,B8 FDD：B1,B3,B5,B7,B8,B20 TDD：B38,B40,B41
	4G (AU version)	GSM/EDGE：850,900,1800MHz WCDMA：B1,B2,B5,B8 FDD：B1,B2,B3,B4,B5,B7,B8,B28 TDD：B40
	4G (A version)	WCDMA：B2,B4,B5 FDD：B2,B4,B12
	4G (V version)	FDD：B4,B13
	4G (J version)	WCDMA：B1,B3,B8,B18,B19，B26 FDD：B2,B4,B12 TDD: B41
	4G (CE version)	GSM/EDGE：900,1800MHz WCDMA：B1,B8 TD-SCDMA：B34,B39 FDD：B1,B3,B8 TDD：B38,B39,B40,B41
	SIM/UIM card interface	Drawer interface / self-elastic interface Support 1.8V/3V SIM/UIM card with built-in 15KV ESD protection
GPS (Optional)	Antenna Port Qty	1
	Antenna Port Type	SMA
	Tracking Sensitivity	> -148 dBm
	Horizontal Accuracy	2.5M
	Protocol	NMEA-0183 V2.3
System	CPU	MIPS CPU,Clock Speed 580Mhz
	Storge	16MB(Scalable to 32MB)
	ARM	128MB(Scalable to 256MB)
Software	Network Protocol	ARP,DDNS, DHCP, DNS , HTTP,HTTPS, ICMP, PPP,PPPoE, SMTP, SNTP, SSL,TCP/IP, Telnet, UDP
	Firewall	Support IPTABLES /DMZ/DoS defense
	VPN	PPTP/L2TP
	Remote Management	Support web remote configuration
	Port Mapping	Support
	SMS Command	Support
	System Log	Support
	Firmware Upgrade	Support serial port local TFTP/web firmware upgrade
Certificate	EMC	EN 55022: 2006/A1: 2007 (CE &RE) Class B
		IEC 61000-4-2 (ESD) Level 4
		IEC 61000-4-3 (RS) Level 4
		IEC 61000-4-4 (EFT) Level 4
		IEC 61000-4-5 (Surge)Level 3
		IEC 61000-4-6 (CS)Level 4
		IEC 61000-4-8 (M/S) Level 4
	others	CE/FCC/ROHS/3C
Environment	Working Temperature&Humidity	-40～85℃,5～95%RH
Environment	Storage Temperature&Humidity	-40～105℃,5～95%RH
Others	Enclosure	Metal
	Size	14511445mm mm
	IP level	IP30
	Net Weight	790g
	Installation	Wall-amount/ rail-amount

Certificates

EMC:

ETSI EN 301 489-1 V2.2.0(2017-03)

ETSI EN 301 489-17 V3.2.0(2017-03)

ETSI EN 300 328 V2.1.1 (2016-11)

Package

4G Wireless Router X 1
GSM/3G/4G Antenna X 1
AC/DC adaptor(12V1A) X1
User Manual X 1

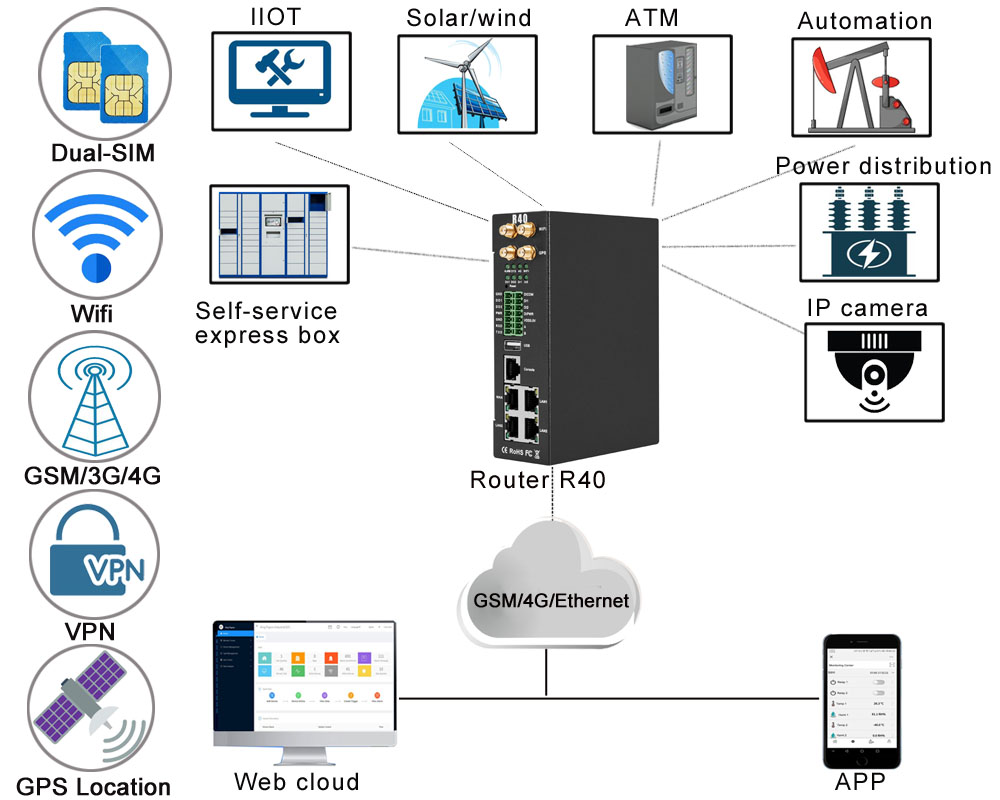

Applications
